Energy Efficiency
Durability
Speed of Construction
Low Maintenance
Our panels provide excellent thermal insulation, keeping buildings warm in winter and cool in summer.
Concrete’s inherent strength and fire resistance enhance the safety and longevity of our panels.
Prefabricated off-site, our panels reduce construction time and labour costs.
TechTilt walls are designed to be low maintenance, providing hassle-free living.
Energy Efficiency
Our panels provide excellent thermal insulation, keeping buildings warm in winter and cool in summer.
Durability
Concrete’s inherent strength and fire resistance enhance the safety and longevity of our panels.
Speed of Construction
Prefabricated off-site, our panels reduce construction time and labour costs.
Low Maintenance
TechTilt walls are designed to be low maintenance, providing hassle-free living.
TechTilt Features
- thermal mass and structural benefits of solid concrete
- includes built-in fire-resistant insulation
- requires no steel or timber frame for support
- specially designed triple chamber conduits to accommodate
- plumbing, electrical and data are incorporated every 600mm
- can be made on-site from local materials or in a factory and transported
- resistant to termites, fire and flood from outside and inside
- can be almost fully recycled at the end of the life of the building
- with a TechTilt wall, you simply drop services down the vertical cavities included as standard design
Insulated Concrete Wall Panels
TechTilt insulated concrete wall system uses Continuous insulation (CI) providing benefits in reducing thermal bridging, which occurs when there are breaks in the insulation layer, allowing heat to transfer through the building envelope more easily.
By providing a continuous layer of insulation around the building, CI helps maintain consistent indoor temperatures, reducing the need for heating and cooling.
SPECIFICATION GUIDE
The envelope walls shall be constructed using the TechTilt concrete walling panels, incorporating an external structural (100mm thick) and internal (75mm thick) concrete panel encasing a continuous insulated board, comprising of a closed cell rigid thermoset phenolic insulation core (50mm, 60mm or 75mm thick) with composite facings on both sides manufactured by Kingspan® Insulation. The finished concrete panels shall be manufactured under the strict specifications of TechTilt Building Systems.
TechTilt’s use of Kooltherm insulation achieved an 8.2-star energy rating for a South Australian home, significantly enhancing its thermal efficiency and reducing energy costs.
R-Values
Total R-value calculation of TechTilt insulated concrete wall panel is calculated using the R-value 2.27 of the insulation and 2 layers of concrete internal and external. The R-value calculation is designed to exceed the deemed to satisfy requirements of the national construction code.
|
Product thickness |
Summer |
Winter |
|
225mm |
R-2.5 |
R-2.6 |
Total R-value calculation of TechTilt insulated concrete wall panel is calculated using the R-value 2.73 of the insulation and 2 layers of concrete internal and external. The R-value calculation is designed to exceed the deemed to satisfy requirements of the national construction code.
|
Product thickness |
Summer |
Winter |
|
235mm |
R-2.9 |
R-3.1 |
Total R-value calculation of TechTilt insulated concrete wall panel is calculated using the R-value 3.4 of the insulation and 2 layers of concrete internal and external. The R-value calculation is designed to exceed the deemed to satisfy requirements of the national construction code.
|
Product thickness |
Summer |
Winter |
|
250mm |
R-3.6 |
R-3.8 |
The R-values shown in the tables are total R-values for the built-up wall system as required by the energy provision of the national construction code, calculated in accordance with AS/NZS 4859.2 2018 and NZS 4214. And manufactured in Australia in accordance AS4859.2
Conduit System
TechTilt has developed a conduit system that incorporates multiple chambers for different services within a single structure, each chamber can be used for different services or utilities, such as electrical wiring, data cables and water pipes. With three chambers, different types of services can be segregated for safety and organisation. For instance, power lines, data cables, and communication wires might each have their own dedicated chamber protecting the services from interference from other services.

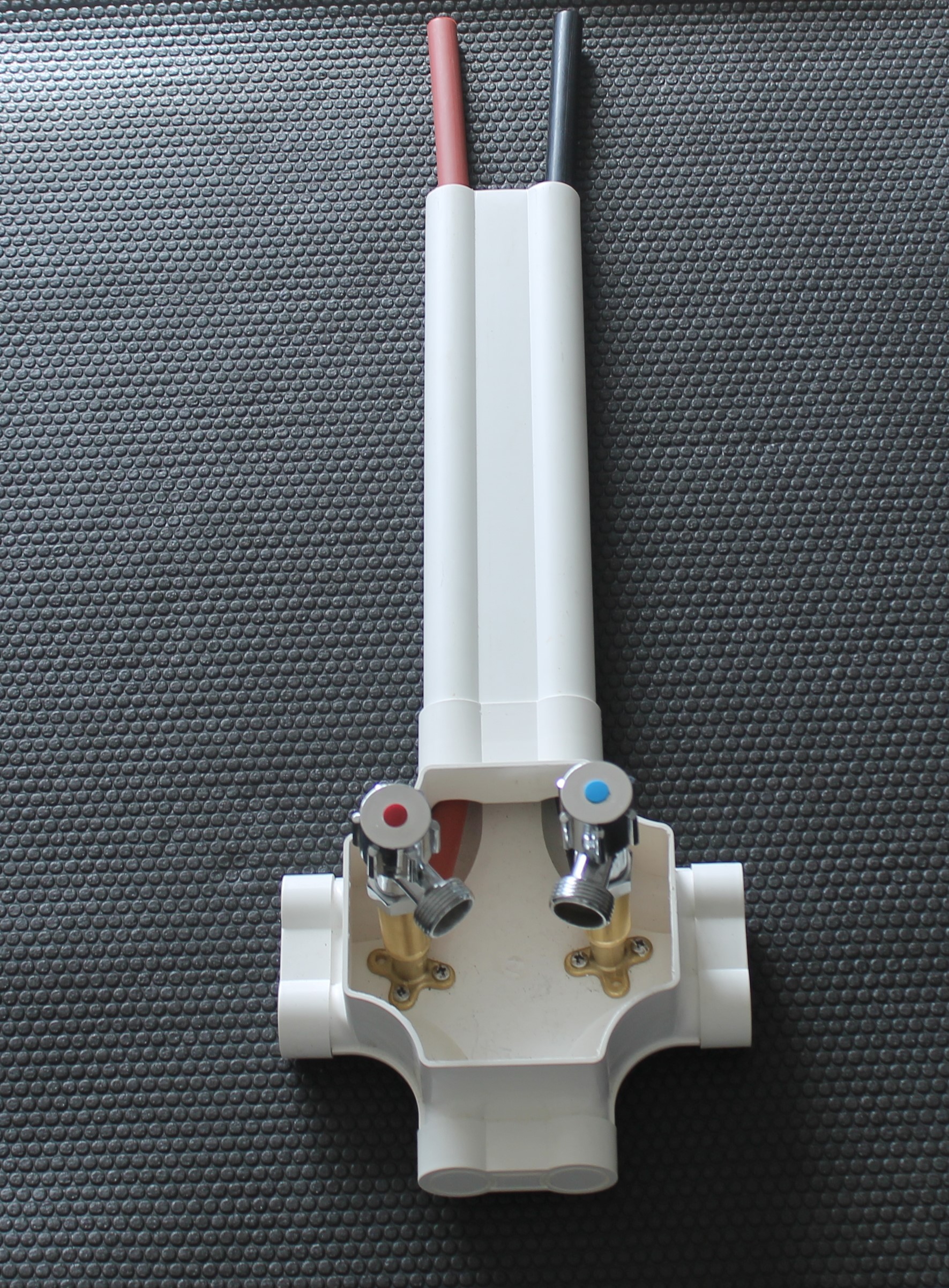

TechTilt has developed a junction box to accommodate typical GPO and plumbing services that is interchangeable for all its conduit system as they provide access points for making connections or splices in the wiring or piping. These boxes are also important for maintenance and troubleshooting.
TechTilt‘s insulated concrete walling system embeds conduits into concrete during the panel manufacturing which offers several advantages.
Overall, a conduit system with three chambers for electrical and plumbing services, incorporating junction boxes, offers a versatile and efficient solution for organising and protecting various utility lines within a building or structure and is suitable to be used in any concrete panel that requires services, including warehouses or commercial buildings.
This conduit system can be purchased separately. Enquire today to find out more or place an order.
